EZ Interface

Description:

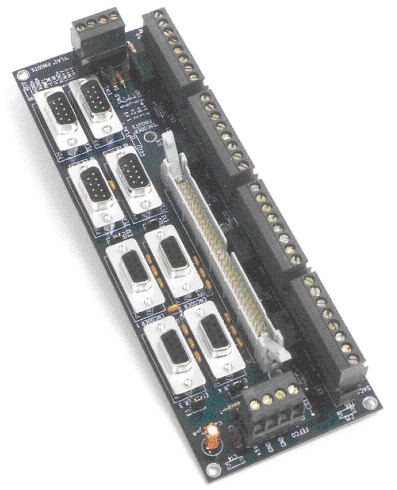

Designed to be used with all first generation PMAC-PCs, PMAC-Lites, PMAC-PCI, PMAC-VME and PMAC-Minis, this user-friendly hardware interface will make connecting PMAC to your motors, encoders and flags easy. No more fussing with cumbersome double-row terminal block connections. No more wiring errors to unlabeled connection points. No more forcing multiple ground wires into one connection point. No more undetected bad power supplies. No more damaged cables from unassisted header connections. No more packaging problems because of shortage of space. No more headaches!

Features:

• compatible with all generation PMACs with 60-pin "JMACH" connector
• socketed & removable terminal blocks
• pin descriptions provided right on the board
• status LEDs for +5V, +12V, and -12V
• UL rated relays for amp enable signals up to 2 amps
• DB9 connectors with noise filtering components for encoders and flags
• dedicated pins for cable shielding with optional connection to ground
• multiple connection points for grounds and voltage supplies
• over-voltage protection when using external 5V supply
• lever assisted connector to PMAC's JMACH cable
• 4-layer construction for better noise immunity

Options Available:

Documentation:

  Click here to view/download the Datasheet

  Click here to view/download the Manual

    Download the Acrobat Reader Now!

Ordering Information:

Distributors are welcome. Quantity discounts are available. To place your order, simply fax your order on company letterhead and include a purchase order number to (785) 854-5272.  We accept credit card orders for first time buyers.
